Launch X431 Dyno

LAUNCH X431 DYNO

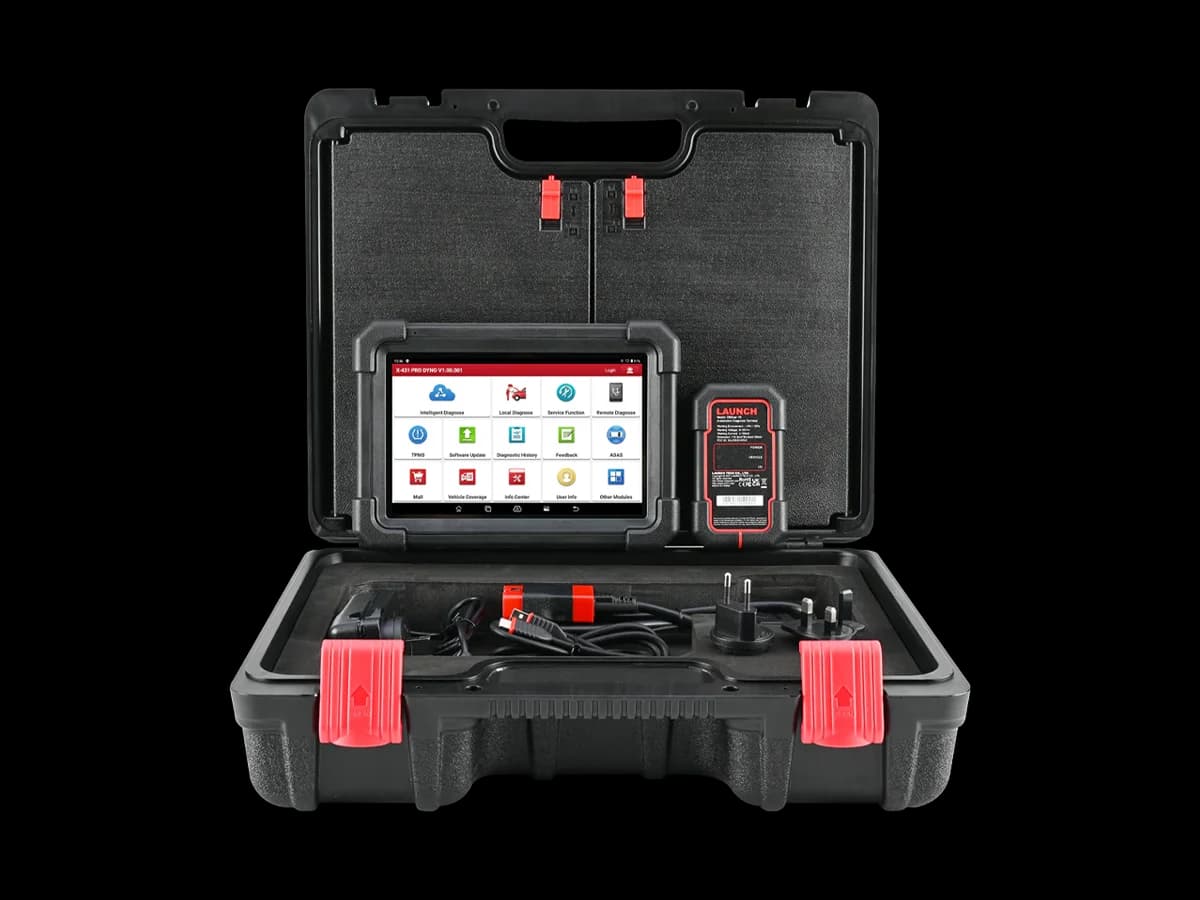

The LAUNCH X431 DYNO is a professional diagnostic tablet for passenger cars (12V), developed for use in garages and workshops. The device combines a broad range of diagnostic functions with modern communication protocols, including J2534 passthrough — a feature not offered by the CRP919X BT and X431 PROS ELITE.

Diagnostic Functions
The X431 DYNO features basic diagnostic functions (reading and clearing fault codes, live data, actuator tests), service functions (maintenance resets, such as oil service and brake maintenance), and special diagnostic functions for more extensive system analyses. According to manufacturer information, this includes 37 or more special service functions for daily reset and learning procedures. Topology module mapping and cloud reporting service are not available on this model. OBDII365

Supported Protocols
The device supports common basic protocols, supplemented with DoIP, CAN FD, and J2534 passthrough, making it compatible with more recent vehicle architectures. D-PDU is not supported.

Programming and Coding Functions
This model offers guided functions for step-by-step support during diagnostic and service procedures. Online/offline ECU programming, online/offline coding, and key programming (basic or advanced) are not available on this device.

Vehicle Coverage
The X431 DYNO focuses on passenger cars (12V). There is no support for supercars, trucks (24V), electric vehicles (basic or advanced), motorcycles, off-highway vehicles, or marine vehicles.

Advanced Functions
The device supports Remote Desk via TeamViewer for remote support and collaboration among technicians. Not available are: ADAS calibration, remote diagnostics, video remote, TPMS service, Secure Gateway Access, HaynesPro and AllData integration, oscilloscope function, split screen, dual VCI, AI assistant, and OBFCM.

Hardware and Connectivity

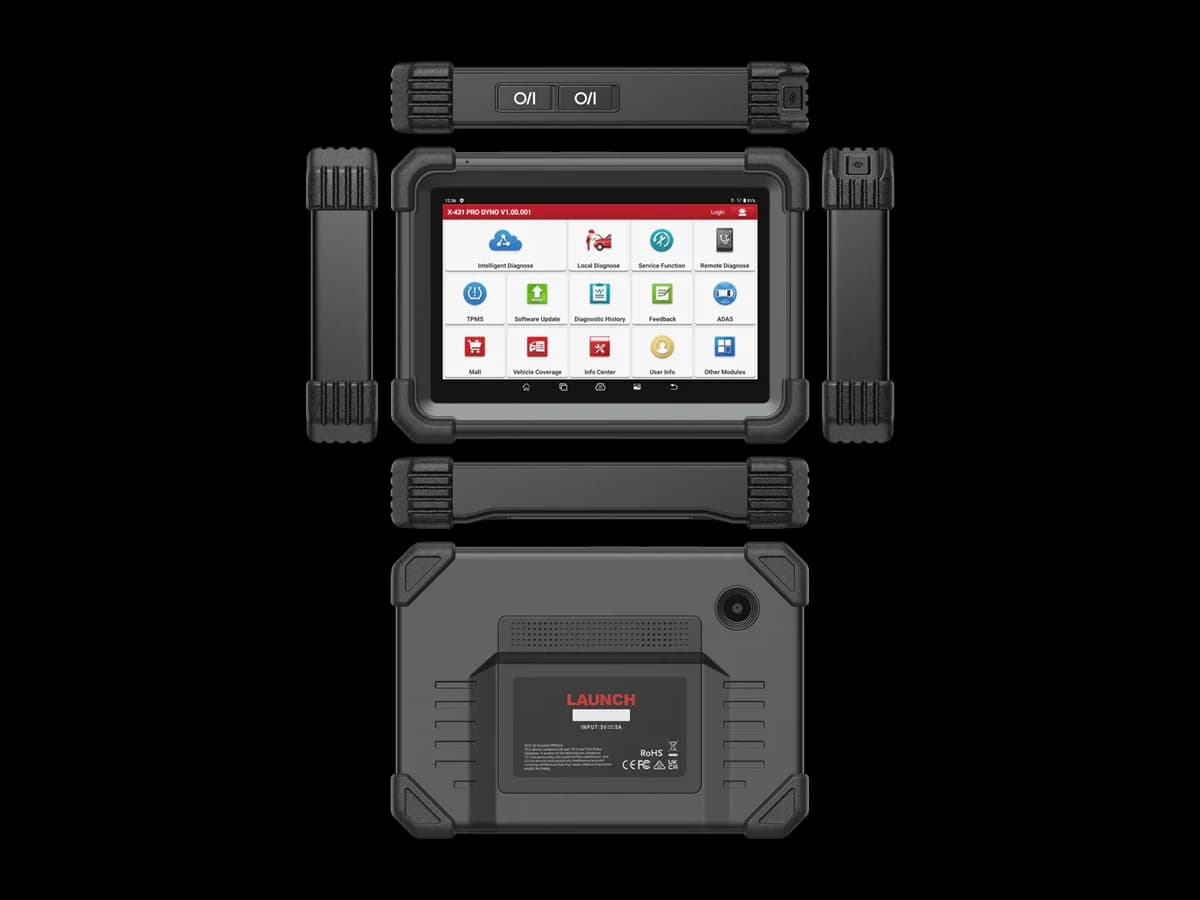

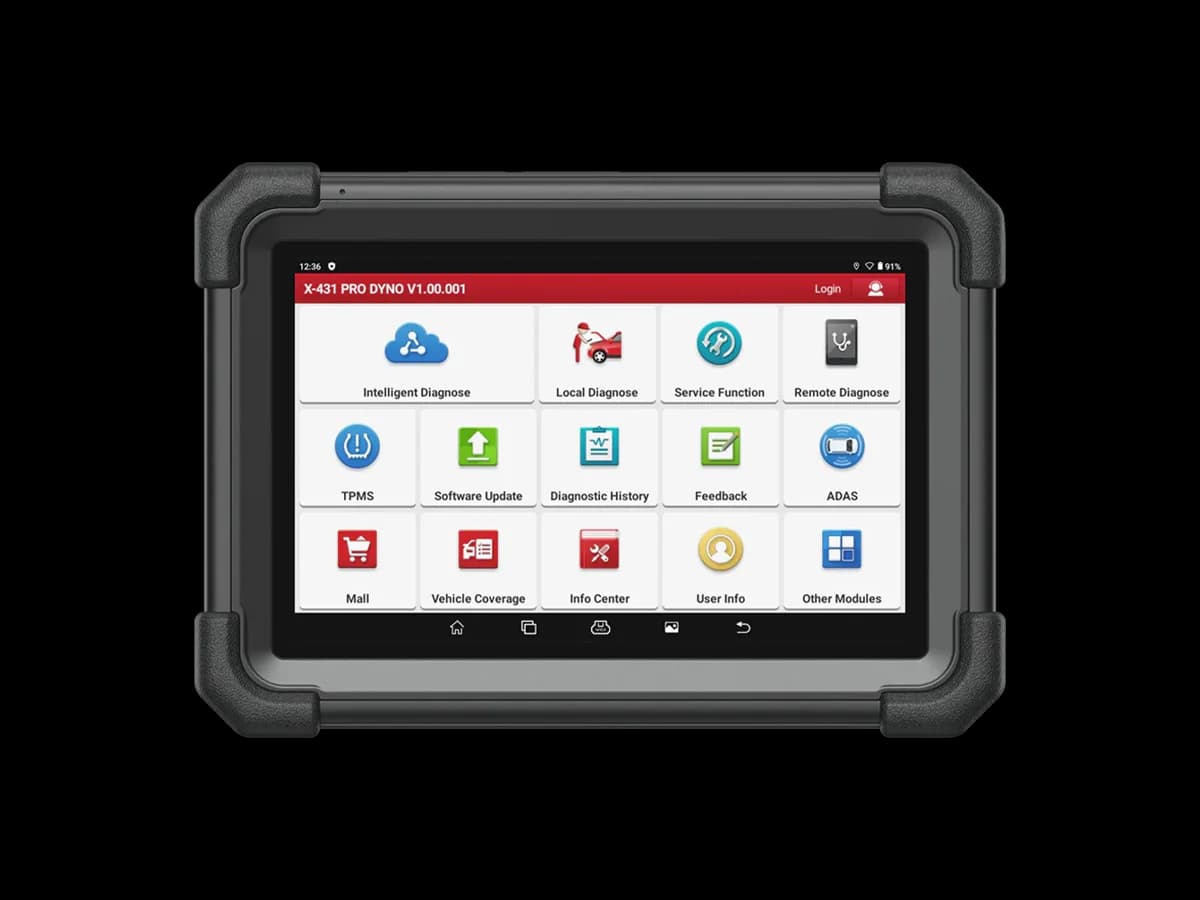

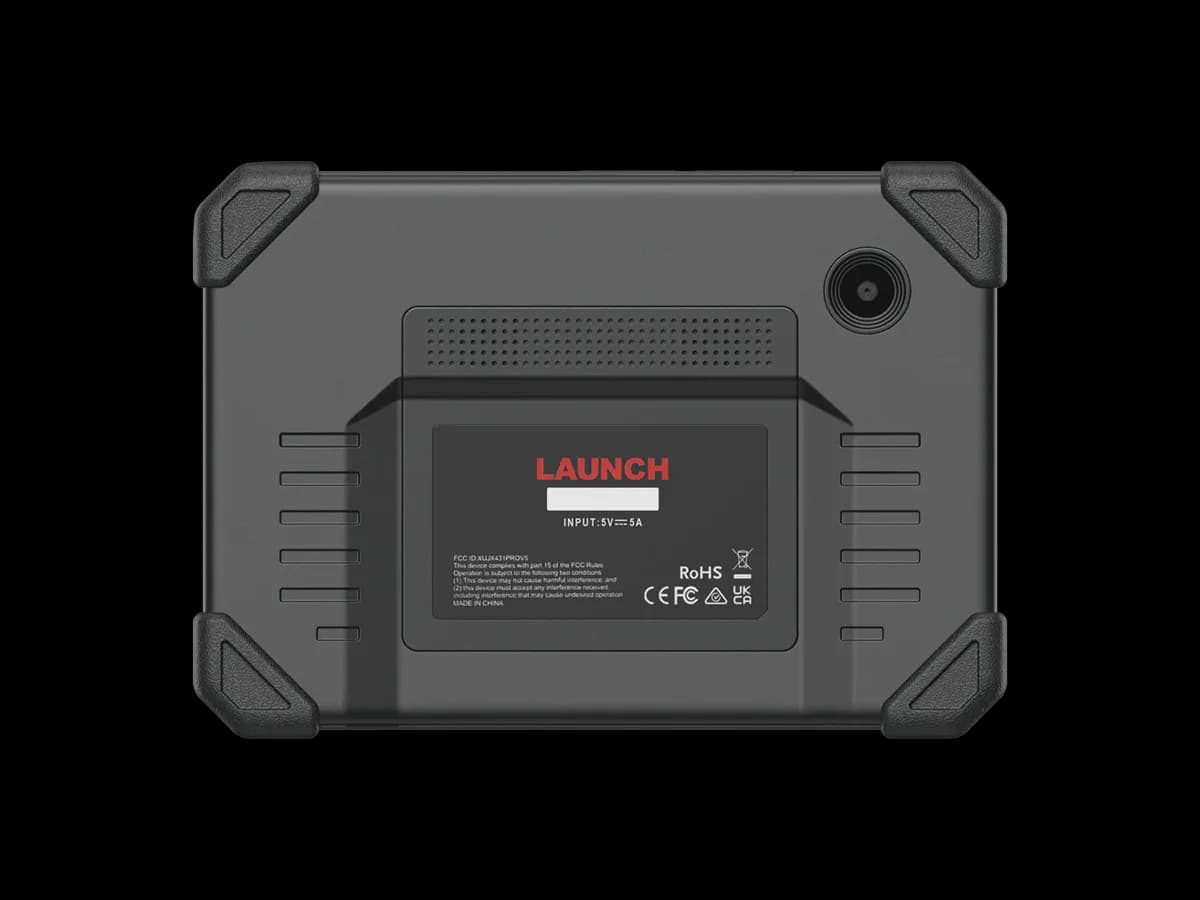

The tablet is equipped with an 8-inch screen, a 4-core processor, 4GB of RAM, and 64GB of storage capacity. The battery has a capacity of 6300 mAh. The device runs on Android 10.0 and offers connectivity via Wi-Fi, Bluetooth (both wireless), and USB; Ethernet is not supported.
